We mainly produces press brake, shearing machine etc. With modern enterprise management methods, based on product quality management, its excellent quality, novel design, reasonable price and perfect after-sales service has won the praise of our customers. Our company is specializing in aviation, light industry, metallurgy, construction, automotive, electrical, decorating etc, in which area we provide the necessary professional machine and tools.

-Press Brake Series
Overall steel welding structure! Brand control system and electrics!
-Shearing Machine Series
Excellent rigidity and stability! Advanced hydraulic integrated system!

Machine Details：

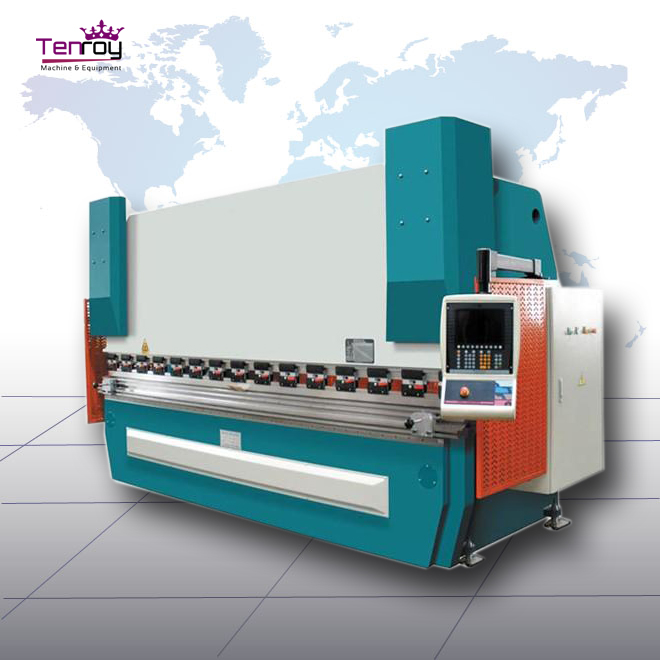

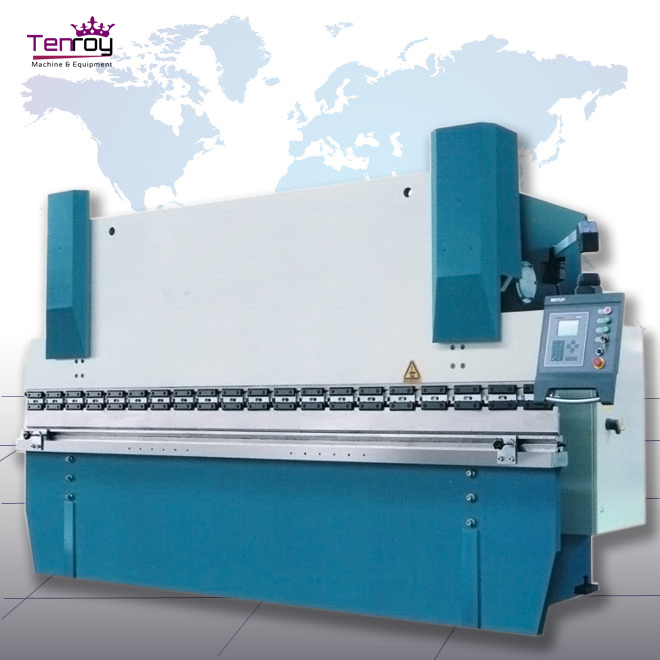

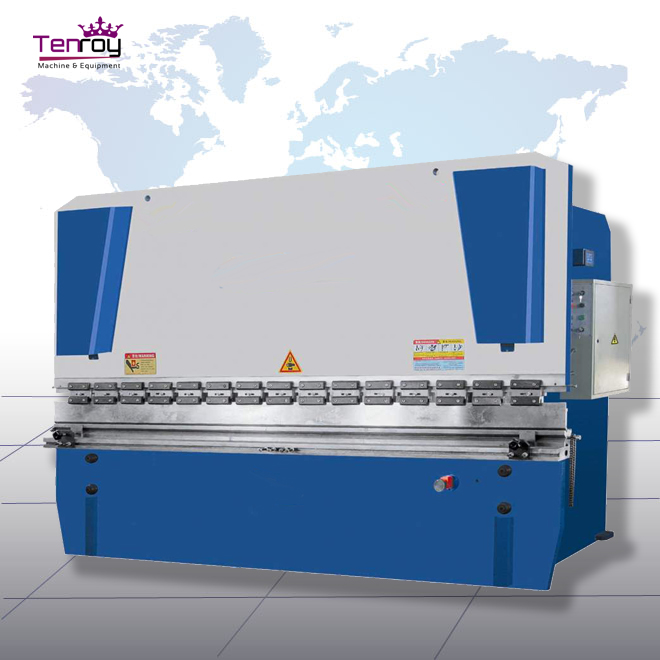

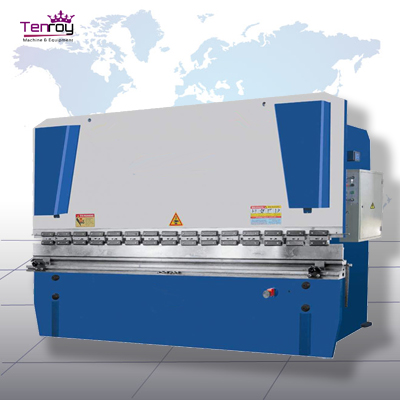

Model: WC67Y	Machine type: Complete set
Machine state:New	Stock or not:in stock
Origin:China	Degree of automation: Semi automatic
Control form:Semi automatic hydraulic	Interface language: English
Host working form: forging	Layout: vertical
Installation form: floor type	Forming principle: cold forming
Processing material: metal	Process accuracy: general precision
application scope: in common use	Applicable industry：metal processing

Features:
★ Adopts full steel welded structure and treated by eliminating stress, which confirm a long-term accuracy and good rigidity.
★ Adopts double hydraulic oil cylinder to control slide move up and down.★ Adopts mechanical torsion axis synchronization which is balanced, reliable and accurate.
★ Upper die is fitted with inclined deflection compensation device, which solve the plate bending angle and straightness problem effectively and have a good bending accuracy.
★ Using combination integrated valve that gets compact structure and less operation failure
★ Back gauge range and slikde stoke adopt electrical control and manual inching device, equipped with digital display device, which make the operation convenient.
Specifications：

Model	Norminal pressure (KN)	Length of table (mm)	Uprights distance (mm)	Throat depth (mm)	Slide stroke (mm)	Open height (mm)	Main motor (kw)	Overal dimensions (mm)
35t/1600	350	1600	1200	220	80	285	4	1600*980*1800
35t/2200	350	2200	1580	220	80	285	4	2200*980*1800
40t/2200	400	2200	1850	250	120	310	5.5	2200*1150*1900
40t/2500	400	2500	1880	250	120	310	5.5	2500*1150*1900
63t/2500	630	2500	1880	250	120	335	5.5	2500*1200*2000
63t/3200	630	3200	2580	250	120	335	5.5	3200*1200*2000
80t/3200	800	3200	2580	320	120	385	7.5	3200*1350*2200
80t/4000	800	4000	3000	320	120	385	7.5	4000*1350*2200
100t/2500	1000	2500	1880	320	120	375	7.5	2500*1450*2300
100t/3200	1000	3200	2580	320	120	375	7.5	3250*1400*2300
100t/4000	1000	4000	3000	320	120	375	7.5	4050*1400*2300
125t/3200	1250	3200	2580	320	120	380	7.5	3250*1400*2300
125t/4000	1250	4000	3000	320	120	380	11	4050*1400*2300
160t/3200	1600	3200	2600	360	180	480	11	3250*1600*2600
160t/4000	1600	4000	3000	360	180	480	11	4050*1600*2600
160t/6000	1600	6000	4800	400	180	480	15	6050*1700*2850
200t/3200	2000	3200	2600	400	200	550	11	3250*1700*2700
200t/4000	2000	4000	3000	400	200	550	11	4050*1700*2700
250t/3200	2500	3200	2600	400	220	560	18.5	3250*2000*3100
250t/4000	2500	4000	3000	400	220	560	18.5	4050*2000*3100
250t/6000	2500	6000	4800	400	220	500	22	6050*2000*3400
300t/4000	3000	4000	3000	420	250	565	22	4050*2000*3300
300t/6000	3000	6000	4800	420	250	565	22	6050*2000*3500
400t/4000	4000	4000	3000	450	250	575	22	4050*2100*3600
400t/6000	4000	6000	4800	450	250	575	30	6050*2100*3600
500t/4000	5000	4000	3000	450	320	635	30	4050*2100*3600
500t/6000	5000	6000	4800	450	320	635	37	6050*2200*3700
600t/4000	6000	4000	3000	420	320	590	37	4050*4500*3700
600t/6000	6000	6000	4900	420	320	590	37	6050*4500*3700

Due to continuous improvement, discrepancy exists between above data and the actual machine data, the technical parameters on the agreements shall prevail.

Technical documents included：
1. Manual instruction(including hydraulic scheme, schematic circuit diagram and machine base map.
2. Verification certificate.
3. Packing list (including the technical documents).

Basic accessories table


No	Accessories	Specification	Modle	Q’ty	Remark
1	Foot switch			1set
2	stone bolt	M24×500		4set
3	The button key			2pc
4	Electric box door key			2pc
5	Front extension arm			2pc



Spare parts table


No.	Name	Material	Owned parts	Q’ty	Remark
1	O Seal	RubberI-4	Hydralic	9pcs	11×1.9GB1235-76
2	O Seal	RubberI-4	Hydralic	10pcs	20×2.4GB1235-76
3	O Seal	RubberI-4	Hydralic	2pcs	25×2.4GB1235-76
4	O Seal	RubberI-4	Hydralic	4pcs	35×3.1GB1235-76
5	O Seal	RubberI-4	Hydralic	2pcs	45×3.1GB1235-76
6	Compound gasket	φ42	Pipeline	2pcs
7	Compound gasket	φ42	Pipeline	3pcs
8	Compound gasket	φ42	Pipeline	3pcs


4. Machine color is standard and is customerized according to customer’s requirements.

Technical training:

Tenroy company is responsible for the user operator training and also we will provide a training software to you.

Quality assurance:
Our company is responsible for the maintenance during the use period (damage that caused by improper operation, the user should bear the repair charge). Warranty is 12 months after the end debugging.
