QII Series Mechanical shearing machine

Times of attention:

Commodity type:Press Brake and Shears

Product description:QII Series Mechanical shearing machine Q11 series mechanical shear has simple structure and basically use resistance key type clutch and open gear rotation. And this series use advanced appliances (foot redal) operation system so that the no...

Consultation telephone:0555-2228055

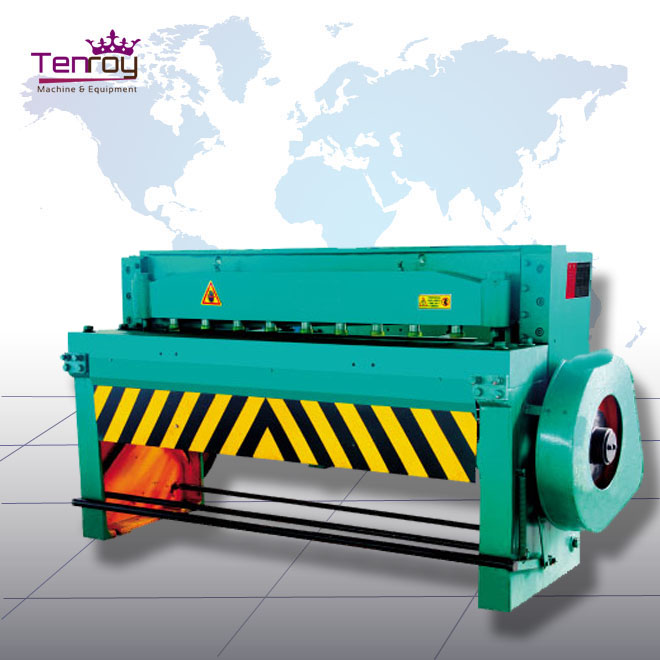

QII Series Mechanical shearing machine

Q11 series mechanical shear has simple structure and basically use resistance key type clutch and open gear rotation. And this series use advanced appliances (foot redal) operation system so that the noise is small and the operation maintenance is convenient. For specifications above 6*2500 are underdrive while the others are upper transmission.

Model Max. Shear Plate Thickness (mm)           Max. Shear Plate Width (mm)                 No. Of strokes (rpm)         Shear Angel (°)      Adj. Distance of back gauge        (mm)            Main Motor Power (kw)              Overal Dimension (mm)
3*1200 3 1200 20 2°25’ 350 3 2015*1500*1300
3*1300 3 1300 20 2°25’ 350 3 2115*1500*1300
3*1500 3 1500 20 2°25’ 350 3 2515*1500*1300
4*2000 4 2000 20 1°30’ 500 5.5 3200*1300*1610
4*2500 4 2500 20 1°30’ 500 5.5 3580*1300*1610
4*3200 4 3200 20 1°30’ 600 7.5 4380*1900*1600
4*4000 4 4000 20 1°30’ 600 7.5 4650*1820*1700
6.3*2000 6.3 2000 24 500 7.5 3180*1765*1550
8*2000 8 2000 24 500 11 3180*1765*1550
6*2500 6 2500 24 500 7.5 3680*2200**2020
6*3200 6 3200 20 1°45’ 650 7.5 4300*2250*2150
8*2500 8 2500 20 2°30’ 650 11 3680*2250*2450
13*2500 13 2500 30 700 15 3680*2330*2500
16*2500 16 2500 30 700 22 3680*2800*2450
20*2500 20 2500 25 750 30 3950*2800*2900
25*2500 25 2500 23 750 45 3970*3120*3445
Above information are just for reference. Discrepancy exists between above data and the actual machine data, the machine data prevail. Tenroy company reserves the right of final interpretation.

Sale Service:
1, the operation manual and quality certification will be along with machine.

2, one set of wear Annex and one set installation and maintenance tools will be provided.

3. One set high quality standard or special toolings be provided.

3, We provide one year's guarantee and lifetime maintenance
