Machine Tool Accessories

1. High endurance surface, longer tool life;
2. Small distortion of material;
3. Smooth molding, Fast adjustability;
4. Nice interchangeability.

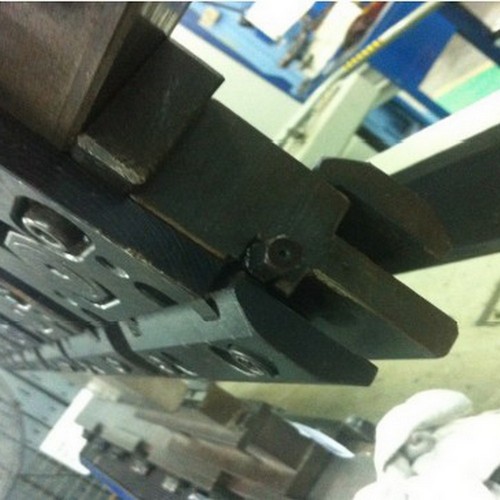

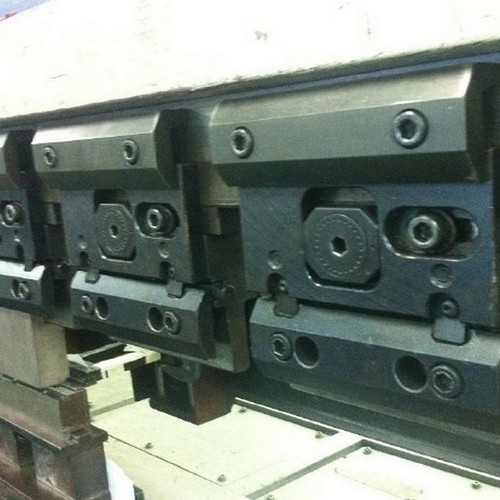

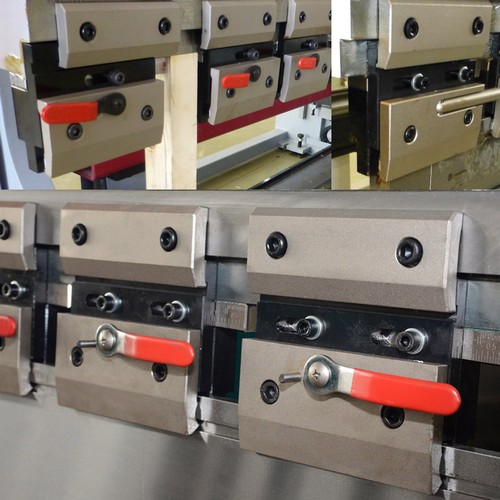

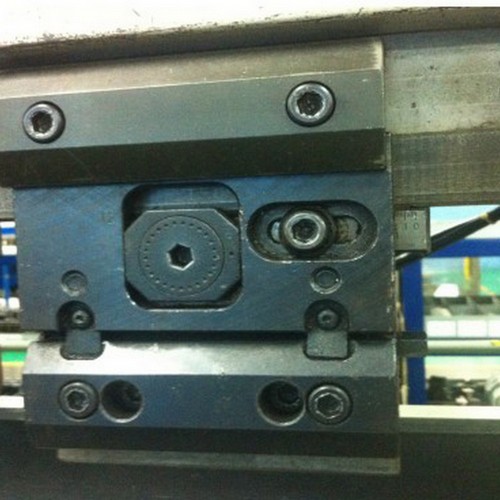

Quick Clamp

Functions:

1. Turn the handle right to about 100 degrees then lock the upper blade;
2. Through the rotation of the woodruff key in the medial of the main plate, the casual blades will be knocked better.
3. with a hook on the mail plate to prevent blade slipping.
4. having limit screw when release.
5. Scale move to the left while adjust the height with each cell 0.10.
6. Through chrome surface, blackening processing, not easy to rust
7. A part will have heat-treatment.

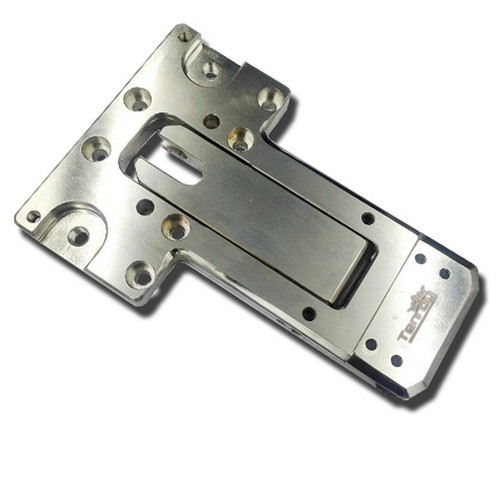

Clamp for punch press tools

Tenroy cnc turret punch press tool clamp adopt high quality steel. We will make more than 20 times test and improvement on the craftwork regarding to every type of clamps that used on different machine. Using special heat treatment and surface finish process, which will prolong one time of the tooling life.

Order Requirements:

1. One set clamp including two pieces. Please mark two pcs when ordering.
2. Please advise whether the clamp include air cylinder while ordering, because the price is very difference with air cylinder or not.
3. If only the upper clamp plate is broken, you can only buy the upper clamp plate. The easy damaged parts usually are upper clamp plate, lower gear plate, stopper.
4. As clamp damage is a common problem, to confirm the continuous of processing, you can buy an extra clamp as spare parts.


Thick Turret Tooling Storage Cabinet

Size(L*W*H): 1100*340*1550mm

Thick Turret Mold Carbinet: total 7 floors.
No 1-3, can put 63 sets A station tool
No.4-5 can put 32 sets B station tool
No.6-7 can put CDE station tool with total 16 sets.

Features:
1. It’s used for tooling’s categories, exhibition and management
2. It’s very convenient for installation and using.
3. Anti-dust, anti-rusty, anti-crash, no worry about tooling stuck, rusty, scratch and bumps.

Trumpf Tooling Storage Cabinet

Size(L*W*H): 1100*340*1550mm

Trumpf Tooling Carbinet: total 7 floors.
No 1 can put 4 tool holder assembly and multi tool.
No.2-3 can put size I tool, every floor can put 12pcs punch bodies, 12pcs stripper plates and 24pcs dies.
No.4-5 can put size II tool, every floor can put 12pcs punch bodies, 12pcs stripper plates and 24pcs dies.
No.6 can put 12 sets forming tools including adjusting ring.
No.7 can put 7 tool holder assembly or forming tool.

Features:
3. It’s used for tooling’s categories, exhibition and management
4. It’s very convenient for installation and using.
3. Anti-dust, anti-rusty, anti-crash, no worry about tooling stuck, rusty, scratch and bumps.

Automatic Tooling Demagnetization Machine

Tenroy tooling demagnetization machine can auto eliminate the magnetic on the tooling, to prevent material coming together with tooling.

V6 Auto Mold Grinder


Specification
Model	V6
Type	Electric
Voltage	AC380V,50Hz,
Main Motor Power	2.2Kw, 2840rpm
Rotating Table Motor	0.100kKw,1440rpm
Servo Morto	0.75KW
Cooling Motor	0.045Kw
Maximum Grinding Diameter	200mm
Maximum Grinding Stroke	200mm
Grinding Wheel Diameter	135mm
Machine Size (LxWxH)	820x810x1810mm
Machine Weight	600Kg


Features
1.Touch-screen operation,Simple, direct, easy to use. Support to different language
2.User-friendly operation and interface, no need to understand the blade-parameters
3.Universal fixture which is suitable for all kinds of CNC punch press tools, thick turret toolings, trumpf tools, multi tools, Murratec punch tools, thin turret toolings, Salgvanini punch tools etc.
4.Adjustable fixture system, that can grind non-flat punch blades (such as monoclinic, the roof type etc.)
5.Tenroy supplies different color cholce based on production environment or customer preferences.

CBN Conductive Electricity Grinding Wheel

Specification: D135*30H*7X*5W*25T*CBN150
Grinding wheel for our V6 model automatic sharpening machine
Can be interchangeable with AMADA TOGU 3 grinding machine
Conductive grinding wheel to induct the turret punch press tools

Automatic Grinding Machine Specification:


Voltage	AC380V，50Hz
Power of Main Motor	2.2Kw, 2840 rpm
Motor of Rotating Table	0.100Kw, 1440 rpm
Servo Motor	0.75KW
Cooling Motor	0.045Kw
Maximum grinding diameter	160mm
Maximum grinding stroke	200mm
The diameter of grinding wheel	135mm
Measurement of machine（L x W x H）	820X820X1810mm
Weight of Machine	600Kg
Air requirement	8mm dia, 0.5MPa
Ambient temperature	0°-40°
Ambient Humidity	0-100%



 JSTM-150 Mold Grinder specially designed to grind CNC punch press tools

Work table adopts imported high precision liner rolling guide, windowsill stable, operation easy.
This grinder can used to grind various kinds of cutter, end mill, R-type cutter, cylindrical cutter, three-blade cutter, single angle cutter, reamer, lather tool, R-type lather tool, hobs, drill, taps, chisel, powerfull cutting tool, ring cutter etc.

The motor can rotate 360 degree, equipped with grinding wheel on two side, increase interoperability of grinding. When grind different material tool, only need to rotate wheel head, then can start to grind, no need to change wheel, that will increase security and reduce wheel interchange and refurbishment time.

Adopt high strength FC30 cast iron so as to maintain long-term mechanical precision.


JSTM-150 Mold Grinder
Motor Power	1.1kw
Motor Speed	2840rpm
Wheel Diameter	150mm
Max. Grind Dimeter	150mm
Max.Feed Rate	0.03mm
Machine Weight	300kgs
Outline Dimension	640x540x1480mm



After Sales Service
One year warranty for the whole tool!
Damaged spare parts can be replaced free of charge in the warranty period!
Tenroy accept the unconditional return for any quality problem that cause failure application of the tool!
