amada cnc turret toolings sharpener

Times of attention:

Commodity type:Tools Accessories

Product description:V6 Auto Mold Grinder Specification Model V6 Type Electric Voltage AC380V,50Hz, Main Motor Power 2.2Kw, 2840rpm Rotating Table Motor 0.100kKw,1440rpm Servo Morto 0.75KW Cooling Motor 0.045Kw Maximum Grinding Diameter 200mm Maximum Grinding S...

Consultation telephone:0555-2228055

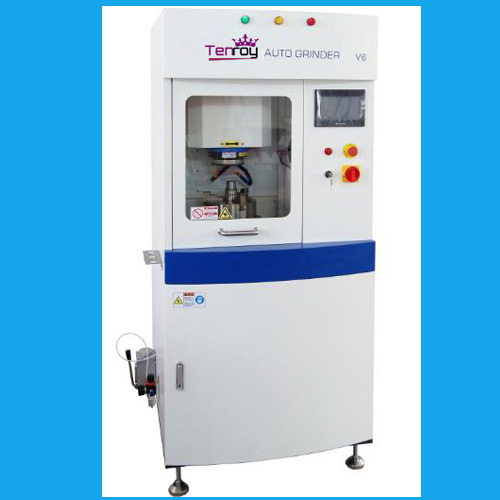

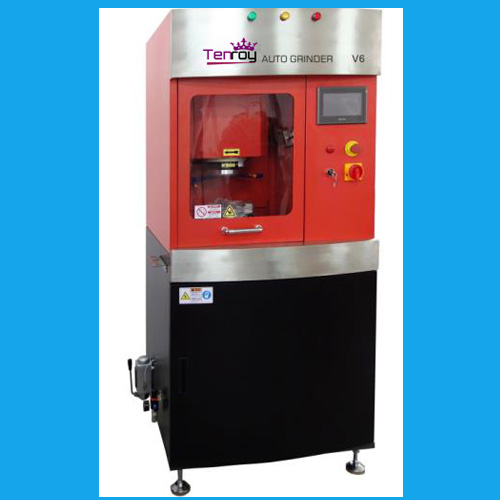

V6 Auto Mold Grinder

Specification
Model V6
Type Electric
Voltage AC380V,50Hz,
Main Motor Power 2.2Kw, 2840rpm
Rotating Table Motor 0.100kKw,1440rpm
Servo Morto 0.75KW
Cooling Motor 0.045Kw
Maximum Grinding Diameter 200mm
Maximum Grinding Stroke 200mm
Grinding Wheel Diameter 135mm
Machine Size (LxWxH) 820x810x1810mm
Machine Weight 600Kg

Features
1.Touch-screen operation,Simple, direct, easy to use. Support to different language
2.User-friendly operation and interface, no need to understand the blade-parameters
3.Universal fixture which is suitable for all kinds of CNC punch press tools, thick turret toolings, trumpf tools, multi tools, Murratec punch tools, thin turret toolings, Salgvanini punch tools etc.
4.Adjustable fixture system, that can grind non-flat punch blades (such as monoclinic, the roof type etc.)

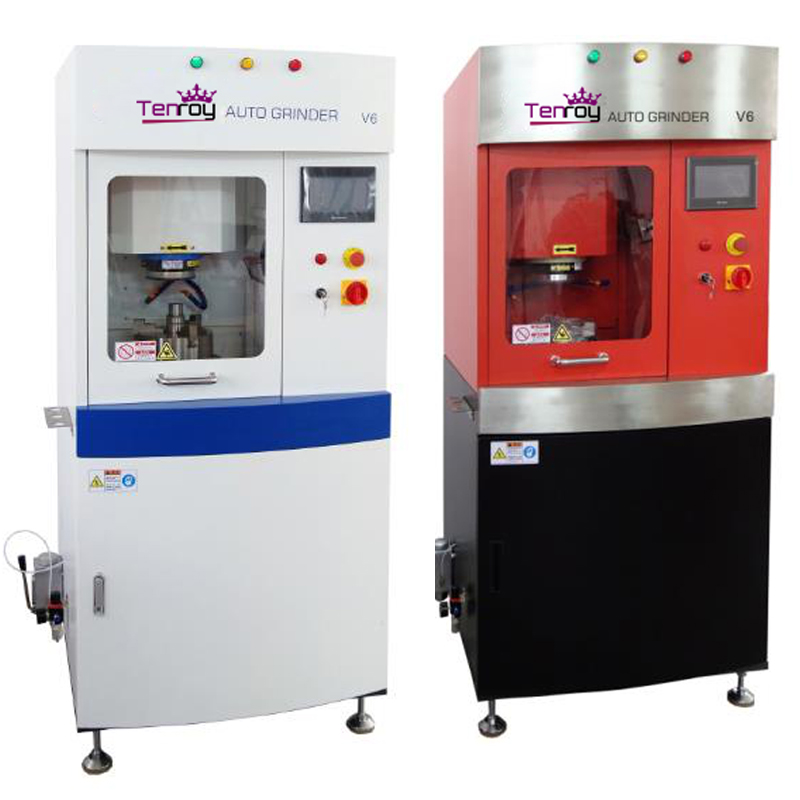

5.Tenroy supplies different color cholce based on production environment or customer preferences.
