Press Brake Tool

1. Advanced equipment and technology;
2. High Precision on the key parts of tools;
3. Standardization with international main brands;
4. More Durable by overall quenching and refining process.

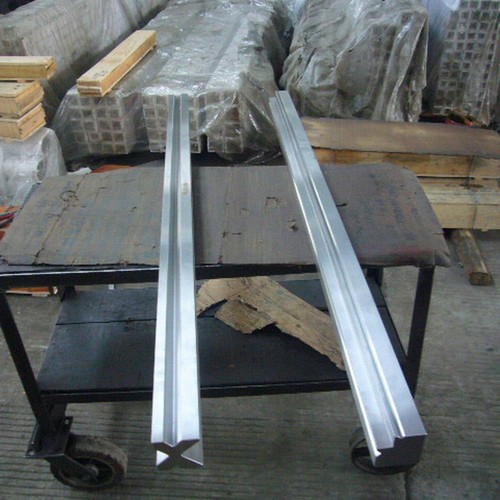

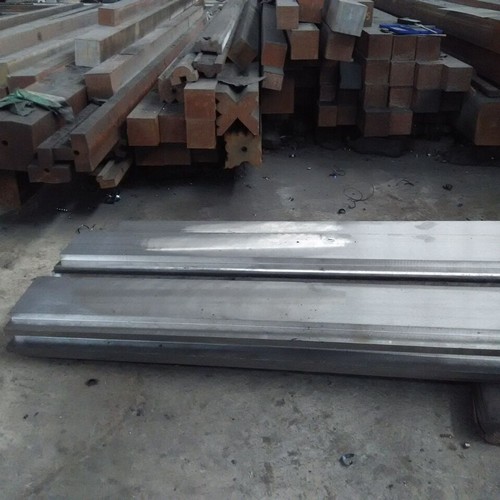

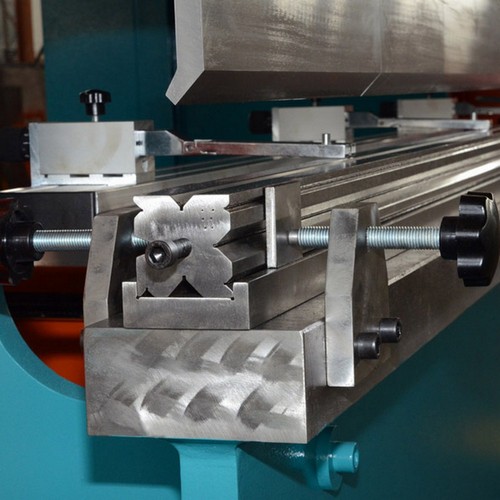

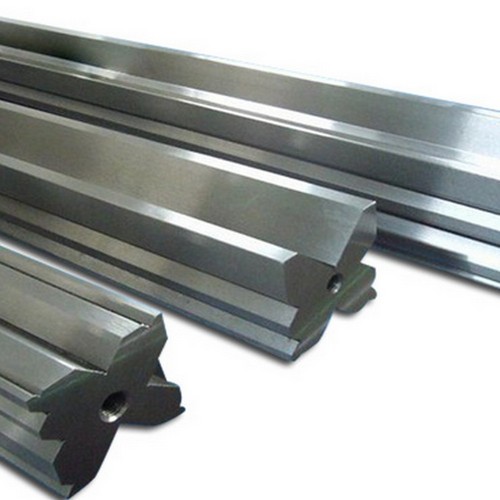

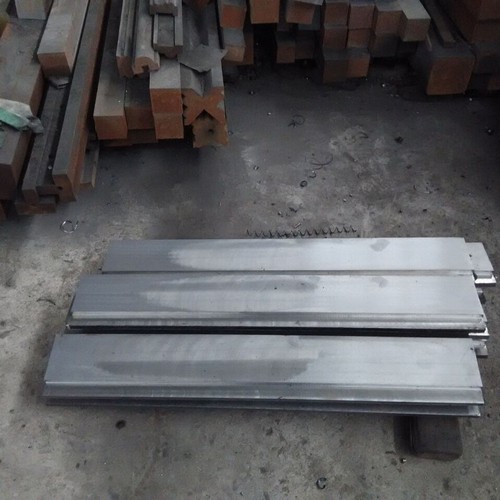

Tenroy standard type press brake tools can be ordered as a set or as individual units. With more than 100 upper and lower tool types in stock, a variety of part geometries is possible.

Standard Tooling Length

Tenroy standard press brake toolings is available in:
Long lengths  835mm
Short lengths  415mm
This provides a very suitable operating length for one person set-up.

Sectionalized Tooling Lengths

Tenroy press brake toolings is available in sectionalized lengths for convenient and efficient operation with two types:

Sectionalized length A
Punch with left & right ear (835mm): 100,10,15,20,40,50,200,300,100
Die (835mm):10,15,20,40,50,100,200,400

Sectionalized length B
Punch with left & right ear (800mm): 100,10,15,20,40,50,165,300,100
Customers can make combination use according the bending machine worktable.

Tenroy Standard Press Brake Tools
Material	42CrMo=SCM440=42CrMo4=4140
Heat treatment	HRC 47+/- 2°  &  Ground
Surface Tolerance	0.02mm
Sectioned	available
Supplying Brands	amada, tokyo, trumpf, LVD, YSD, beyeler, etc.
Customized & Design Service	available
Delivery time	10-15 working days
Package	free fumigation wooden box
Payment Methods	TT, LC, credit card, western union etc.
Shipment Way	By sea, by air, by express, or else


Tenroy toolings applications: communications equipment, kitchen equipment, hotel equipment, solar energy equipment, machine equipment, power and electrical control cabinets, low voltage switch cabinet, aviation, military, ships, locomotives, cars, refrigerators, air conditioners, stoves, elevators, security door manufacturing, stainless steel decoration, cabinet manufacturing, and other sheet metal industries.

The main production equipments: CNC lathes, four-axis machining centers, CNC EDM machine, CNC grinding machines, wire cutting etc.

Tenroy press brake tools adopt 42CrMo and advanced processing technology. The working accuracy of all the vital part can arrive to +-0.02mm. Our advantages are as below:

High Precision: all the cutting edge use one time grinding forming which will confirm highly consistent mould angle and “R” for the same model. So that to insure the same assembly accuracy for subsequent purchase.

Standardization:  The mold is consistent with the domestic and foreign standard, so that can be assembled simply with other manufacturers. Standard segmented part can bend any angle  efficiently. The standard operation reduces the loss of working hours, improve the efficiency of working.

Wear Resistance: All the whole mold through quenching and fine grinding, tenroy refuses partial quenching. It highly improve the mold overall stability, abrasion resistance and bending toughness that press brake tool should have.

Professional: Every year, tenroy company must be for all regular employees training so that to confirm their quality and continuously upgrade skills in order to provide high quality products and better customer service.
