Murata puching tools molds for CNC turret punch presses

Times of attention:

Commodity type:Murata 112、114 & Vulcan Series

Product description:TenroyMurata 112 and 114 series punch press toolsinclude high precision HSS punch body, urethane stripper and slug free die. Murata Series Max.Dia (mm) Station 112 114 A 8.74, only for round 12.70, only for round B 25.40 25.40 C 38.10 38.10...

Consultation telephone:0555-2228055

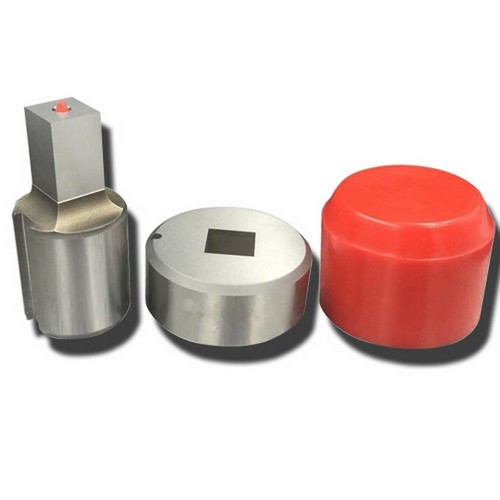

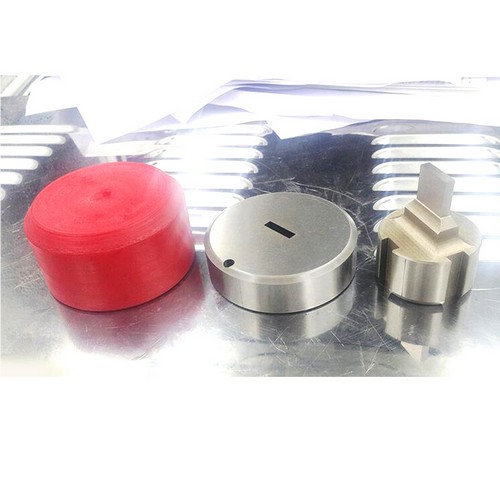

Tenroy Murata 112 and 114 series punch press tools include high precision HSS punch body, urethane stripper and slug free die.

Murata Series Max.Dia (mm)
Station 112 114
A 8.74, only for round 12.70, only for round
B 25.40 25.40
C 38.10 38.10
D 50.80 50.80
E 63.50 63.50
F 79.38 76.20
G 88.90 88.90
H   104.78
J   120.65
K   139.70
L   152.40

112 & 114 Punch body: Tenroy Murata 112 and 114 series punch body is fully compatible with the original. We adopt high wear-resistant steel and heat treatment, so that to make the material hardness and toughness achieve perfect balance. 1/4 degree back taper and near polished work-piece surfaces can reduce friction and eliminate scratches. Through single point machining, the edge arc can greatly improve cutting edge strength.
112 & 114 Slug free die: Tenroy Murata 112 and 114 series die adopt high wear-resistant steel and heat treatment, so that to make the material hardness and toughness achieve perfect balance. The geometric design of the Slug free die can avoid the headaches strip problem. The roundness process on the die can eliminate burr in the corner. The most grinding length can be up to 3.00mm which will improve the die strength. Stress free “stress relief device” evenly distributed and reduce press-force.

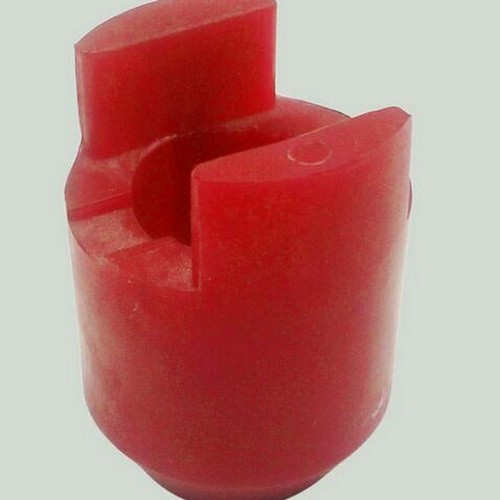

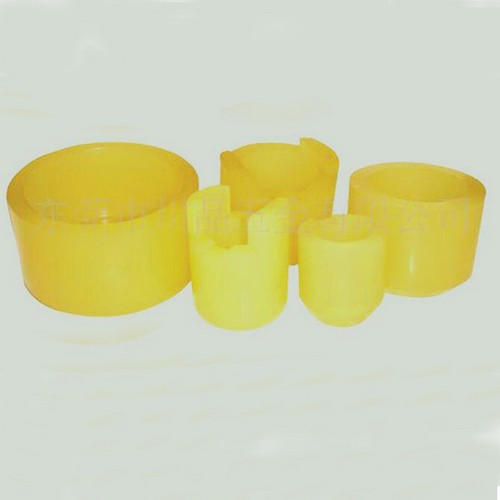

112 & 114 Polyurethane stripper: Tenroy Murata 112 and 114 series urethane stripper can reduce punching noise, eliminate the score on the sheet, which is safe and not have any scratches. Even the same for the polished aluminum. It can Improve press performance and no sheet projection emerged.

Tenroy company also produce: full assembly punch holder, die holder and sheet clamp.

Tenroy Murata Vulcan series punch press tools include high precision HSS punch body, metal stripper plate and slug free die.

Vulcan series max. Punch body diameter or diagnal length
Murrat Series Max.Dia (mm)
Station Vulcan
X 12.70 only for round
AB 25.00, max. punch length to 120.42
B 25.00, min. Punch length to 50.42
C 38.00
D 51.00
E 63.50
F 76.20
G 88.90
H 104.78
J 120.65
K 139.70
L 152.00

Vulcan Punch body: Tenroy Murata Vulcan series punch body is made of high wear-resistant steel. It has an extra grinding length. 1/4 degree back taper and near polished work-piece surfaces can reduce friction and eliminate scratches. Corner radius design can reduce scrap and extend toolings service life.

Vulcan Slug free die: Tenroy Murata Vulcan series die adopt high wear-resistant steel and heat treatment, so that to make the material hardness and toughness achieve perfect balance. The geometric design of the Slug free die can avoid the headaches strip problem. The roundness process on the die can eliminate burr in the corner. The external positioning pin can make accurate orientation. The grinding length can be up to 3.00mm. Good roundness and flatness can improve the die strength.
Vulcan metal stripper: Tenroy Murata Vulcan series metal stripper can provide lateral support for stamping, improve the parts quality and extend die life. Good roundness and flatness can improve workpiece quality.
