rib roller forming dies set in hot selling

Times of attention:

Commodity type:Special Forming Punch and Dies

Product description:Special Forming Punch and Dies Tenroy company is specialized in producing various type of special forming shape tools. The full set tool is made of high quality tool steel with tight tolerances, good performance and durable using. Bridge Fo...

Consultation telephone:0555-2228055

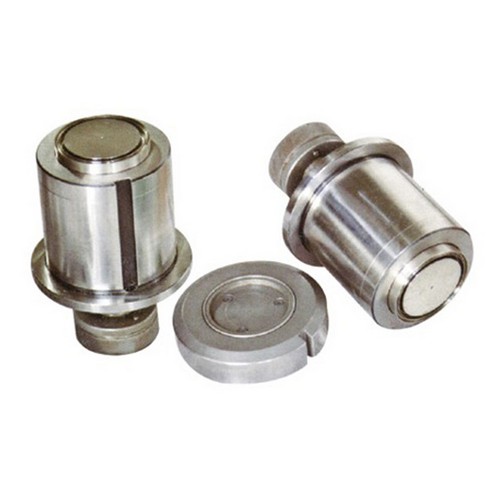

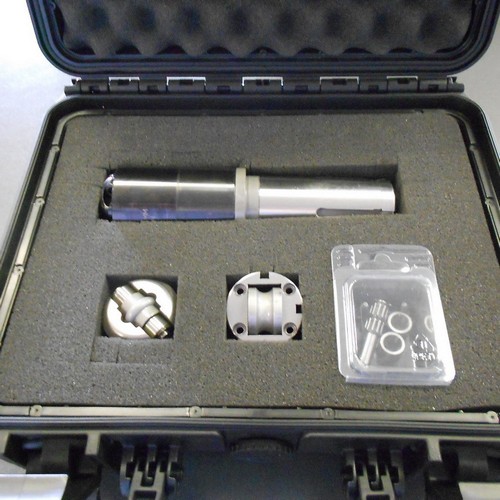

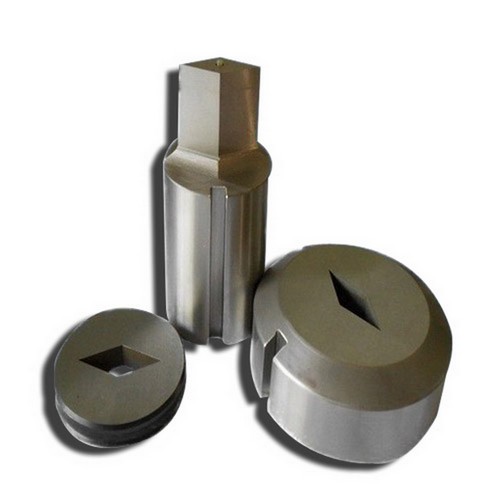

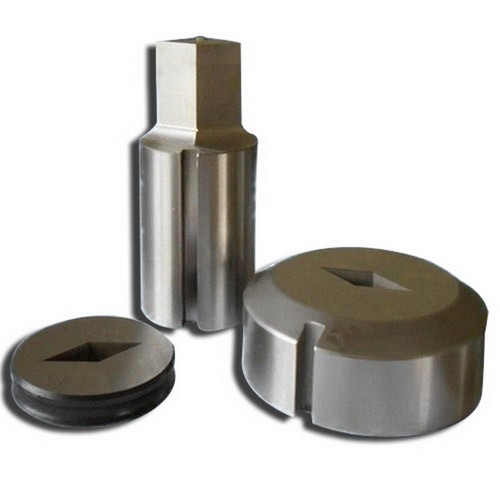

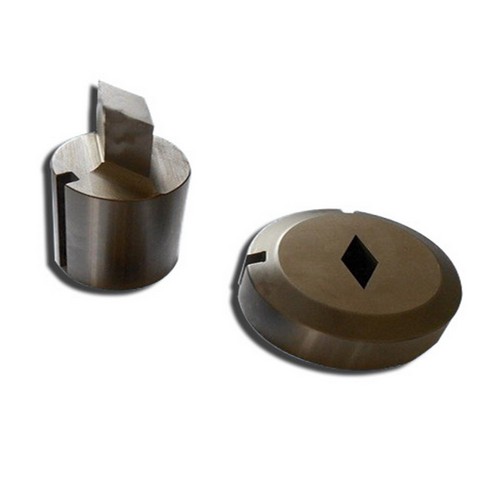

Special Forming Punch and Dies
Tenroy company is specialized in producing various type of special forming shape tools. The full set tool is made of high quality tool steel with tight tolerances, good performance and durable using.

Bridge Forming Tools(Form-up/down)

Order Requirements:
1) Machine name and model
2) Material type and thickness being processed
3) Double or single design
4) Form up or down
5) Bridge width C≥2T, and C≥1.8mm
Value of the letters showed in above drawing

CenterPoint Forming Tools(Form-up/down)

Order Requirements:
1) Machine name and model
2) Material type and thickness being processed
3) Form up or down
4) 90 degree, max plate thickness 6.0mm
5) Adjust tool height can control forming depth
6) Value of the letters showed in above drawing

Louver Tooling (closed/opened)

Order Requirements:
1) Machine name and model
2) Material type and thickness being processed
3) Value of the letters showed in above drawing
4) One mould can only be correspond to one plate thickness, form way: up
5) For thickness that less than 1.2mm, R must be larger than 10mm so to avoid corner tears
6) Can change configuration plug so to get different louver size
7) Can order B, C, D, E station louver tools, key postion 0°, 90°, 180°, 270°
8) Common recommend louver sizes like below:
A size 50mm 80mm 80mm 80mm
B size 10mm 10mm 12mm 15mm
H size 5mm 6mm 6mm 6mm







Order Requirements:
1) Machine name and model
2) Material type and thickness being processed
3) Value of the letters showed in above drawing
4) One mould can only be correspond to one plate thickness, form way: up
5) No shim needed to adjust height, just change configuration plug so to get different louver size


Cluster Punch Press Tools

Order Requirements:
1) Machine name and model
2) Material type and thickness being processed
3) Value of the letters showed in above drawing

Advantages of cluster tool:
* Reduce punching times, saving processing time and improve processing efficiency
* Prevent punch body wear in an earlier time, restrain punch body be too hot, extend tooling working life
* Compare with single hole processed, can reduce tensile stress and compressive stress that deform material
* Can change punch insert freely
* More suitalbe for punching stainless steel or alum palte, and has superior durability

Counter Sink Forming Tool (Form-up/down)

Order Requirements:
1) Machine name and model
2) Material type and thickness being processed
3) Value of the letters showed in above drawing
4) Pre-punching hole, can make a better forming shape
Pre-punching hole diameter (mild steel)
Item 1.0mm 1.2mm 1.5mm 1.6mm 2.0mm
M2*0.4 3.5 3.5 3.2 3.0 3.0
M2.5*0.45 4.5 4.5 4.2 4.0 3.8
M2.6*0.45 4.8 4.5 4.5 4.3 4.0
M3*0.5 5.7 5.3 5.3 5.0 4.8
M4*0.7   7.3 7.3 7.0 7.0
M5*0.8     9.0 8.8 8.6
M6*1.0         10.6
5) Punch body is changeable
6) Can choose form up or down, contersink punch and plate thickeness is correspondent. Different plate thickness require different punch body. The min.plate thickness must be thicker than 1.0mm (t≥1.0mm), max. plate thickness is 3.2mm

Emboss Forming Punch Tools

Order Requirements:
1) Machine name and model
2) Material type and thickness being processed
3) Value of the letters showed in above drawing
4) Form way: up or down
5) The emboss position should keep a suitable distance between perforation, plate edge and clamp
6) Can be formed in round and shape

Beading Tool (Emboss continuous Forming Tools)

Order Requirements:
1) Machine name and model
2) Material type and thickness being processed
3) Value of the letters showed in above drawing
4) Form way: up or down
5) The beading position should keep a suitable distance between perforation, plate edge and clamp
6) Suggested pace 0.5mm-2.0mm
7) Max. Sheet thickness: 2.7mm (carbon steel & alum), 2.3mm(stainless steel)

Threaded Extrustion Forming Tool (Form up/down)

Order Requirements:
1) Machine name and model
2) Material type and thickness being processed
3) Value of the letters showed in above drawing
4) Form way: up or down
5) Pre-punching hole is necessary.
6) Forming height must to confirm 3 pitch
7) Max. Sheet thickness: 2.3 mm (carbon steel), 2.0mm (alum plate), 1.2mm(stainless steel)
