JFY B station punch and die

Times of attention:

Commodity type:Thin Turret Punch Press Tools

Product description:Thin Turret Punch Press Tools 1. High endurance surface, longer tool life; 2. Small distortion of material; 3. Smooth molding, Fast adjustability; 4. Nice interchangeability. Tenroystandard thin turret toolingscan be ordered as a set or as...

Consultation telephone:0555-2228055

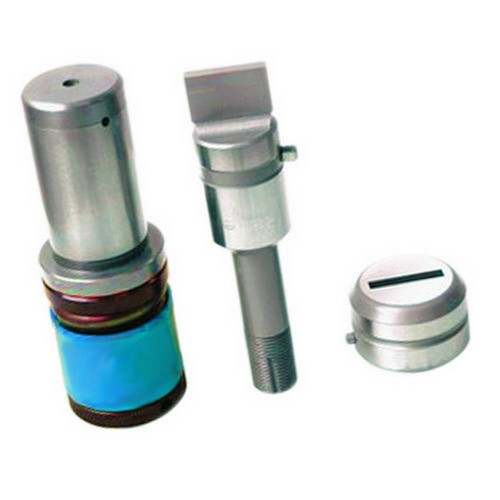

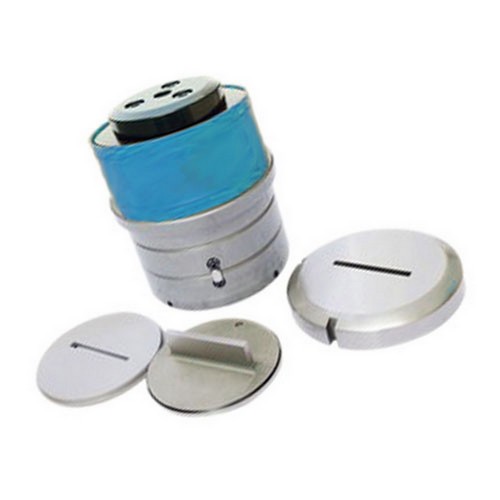

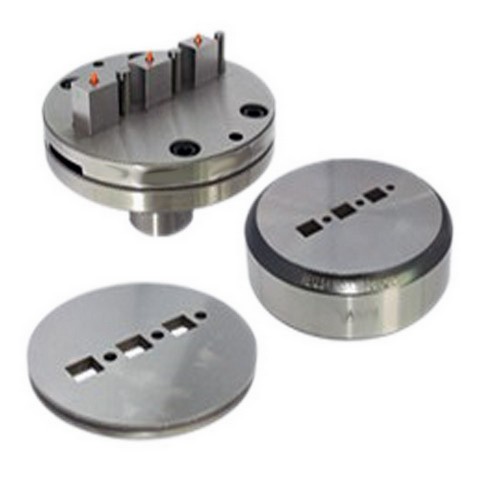

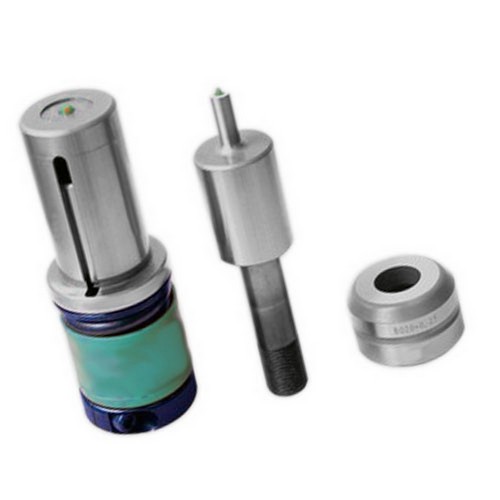

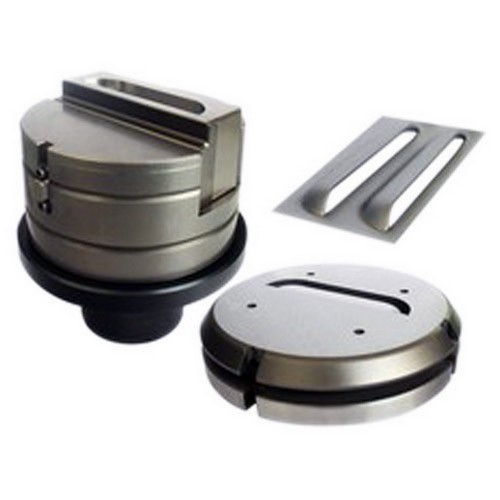

Thin Turret Punch Press Tools

1. High endurance surface, longer tool life;
2. Small distortion of material;
3. Smooth molding, Fast adjustability;
4. Nice interchangeability.

Tenroy standard thin turret toolings can be ordered as a set or as individual units. A variety of part geometries is possible.

The related size of the thin turret punch press tools and the CNC punch press must be in accord with below table showing:
Thin Turret
Punch Press Tools
Station
B (1 1/4”) D (3 1/2”)
Punch Assembly Ass. length 140 141
Punch length 139.2 49.0
Guide key width 4.760 - 0.008 6.350 -0.009
Guide O dia 38.10-0.009 -0.025 111.10-0.012 -0.034
Die O dia. 47.62-0.009 -0.025 125.43-0.014 -0.039
Height 30 22
Unit: mm

The basic parameters of each station for standard thick turret tools please see below table:
Basic Parameters of thin Turret Tools Station
B (1 1/4”) D (3 1/2”)
Max.Process Range 31.7 31.8-88.9
Max.Punch Thickness 6.4 6.4
Min.Punch Thickness 0.5 0.5
Max. Blade Length 18.0 18.0
Die Insert Depth 3 4
Grinding Vlue Punch Body 2 2
Die 2 2
Unit: mm
