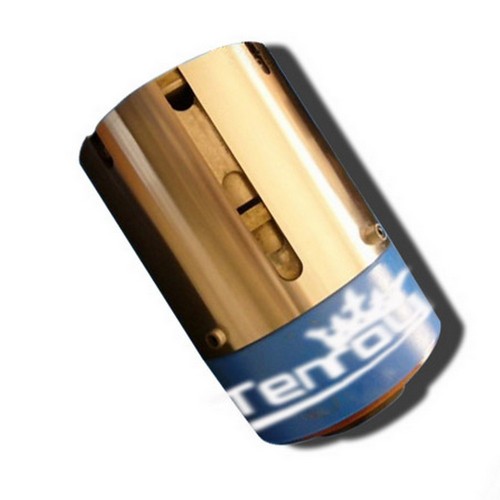

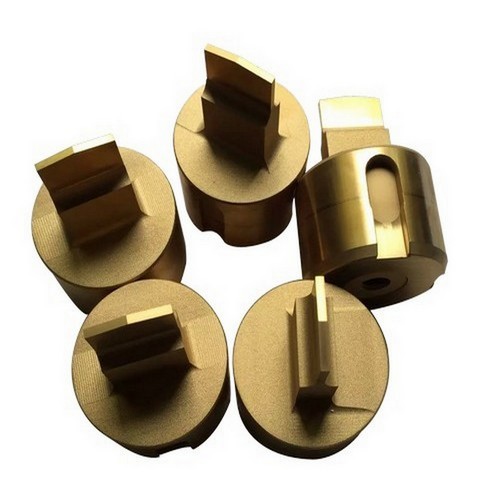

Titanium coating punch body in great demand

Times of attention:

Commodity type:standard punch press tools

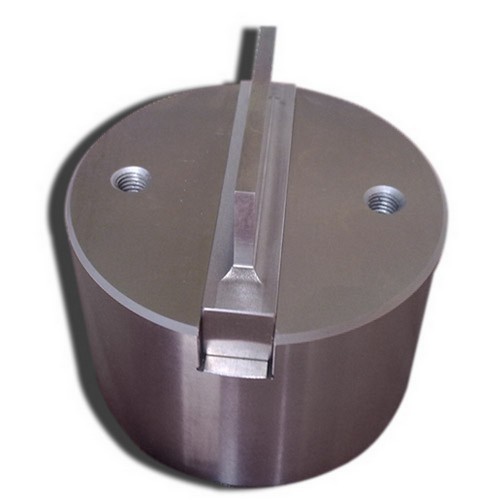

Product description:Special Forming Punch and Dies Tenroy company is specialized in producing various type of special forming shape tools. The full set tool is made of high quality tool steel with tight tolerances good performance and durable using. Bridge Fo...

Consultation telephone:0555-2228055

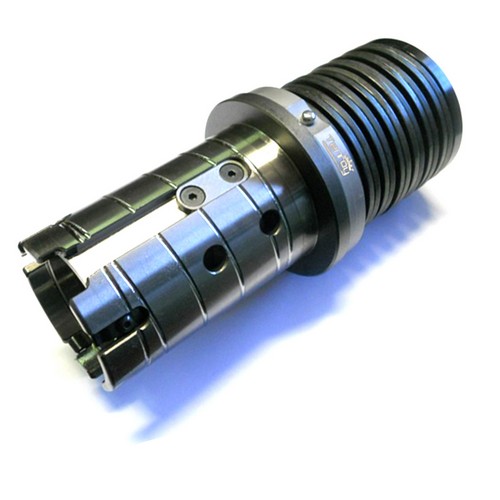

Amada standard punch tools
1. High speed tool steel;
2. Easy length adjustment-without a shim or replacement of mold;
3. Guide groove design, convenient for lubrication;
4. Slug free die design.
Tenroy standard thick turret toolings are suitable for Amada, Finn-power, Tailift, LFK, Yawei and other brand punch presses. It is the most practical types of sheet metal mold. It can improve the performance of tool, enhance flexibility and prolong the tooling life.

The related size of the thick turret punch press tools and the CNC punch press must be in accord with below table showing:
Standard Thick Turret
Punch Press Tools
A (1/2”) B (1 1/4”) C (2”) D (3 1/2”) E (4 1/2”)
Punch Assembly Ass. length 209.50 209.50 209.00 211.00 211.00
Punch length 207.50 207.50 96.00 84.00 85.00
Guide O dia. 25.91-0.007 -0.020 47.83-0.009 -0.025 69.85-0.010 -0.029 111.25-0.012 -0.034 133.35-0.014 -0.039
Guide key width 4.76+0.022 +0.010 4.76+0.022 +0.010 12.70+0.034 +0.016 12.70+0.034 +0.016 12.70+0.034 +0.016
Die O dia. 25.40-0.007 -0.020 47.62-0.009 -0.025 88.89-0.012 -0.034 125.43-0.014 -0.039 158.74-0.014 -0.039
Height 30 30 30 30 30
                                                                        Unit: mm
The basic parameters of each station for standard thick turret tools please see below table:
Basic Parameters of Thick Turret Tools Station
A (1/2”) B (1 1/4”) C (2”) D (3 1/2”) E (4 1/2”)
Max.Process Range 12.7 12.7-31.7 31.7-50.8 50.8-88.9 88.9-114.3
Max.Punch Thickness 3.8 6.4 6.4 6.4 6.4
Min.Punch Thickness 0.5 0.5 0.5 0.5 0.5
Compression Resistance 60 KN 170 KN 250 KN 350 KN 400 KN
Max. Blade Length 16.0 18.0 25.5 25.5 26.5
Die Insert Depth 3 3 3 4 5
Grinding Vlue Punch Body 2 2 2 2 2
Die 2 2 2 2 2
                                                                      Unit: mm
For punch body, tenroy produce it with SKH-51. It has another name of high speed steel. This is an alloy steel with complex composition. It includes tungsten, molybdenum, chromium, vanadium, cobalt and other carbide forming elements. The total amount of alloying element arrive to 10%-25%. On the condition of hot heat (around 500℃) that emerging with high-speed punching, it will keep high hardness and HRC can arrive above 60. This is also the main feature of high speed steel which is called red hardness. This material can make the toolings more durable and wear-ressistant which will cause a longer tooling life.

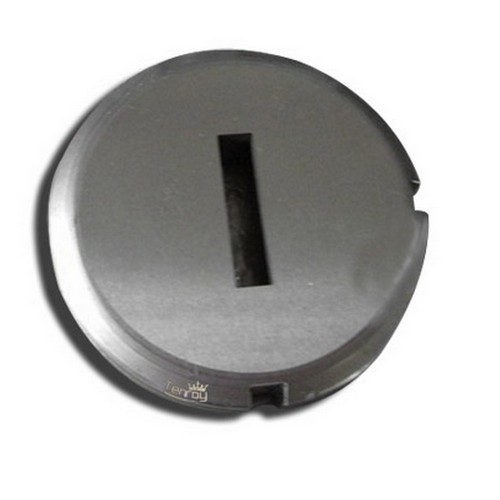

The die material tenroy choose is Japanese imported special steel DC53, which is a new type tooling steel improved from SKD11. This material overcome the weakness of SKD11’s insufficient tempering hardness and toughness. The strength and hardness is excellent while doing heat treatment, HRC can arrive to 62-63.
DC53 steel’s toughness in cold die steel is more prominent. Tools made by DC53 will have little cracks and cracking which will greatly improve the tooling life.
Tenroy toolings applications: communications equipment, kitchen equipment, hotel equipment, solar energy equipment, machine equipment, power and electrical control cabinets, low voltage switch cabinet, aviation, military, ships, locomotives, cars, refrigerators, air conditioners, stoves, elevators, security door manufacturing, stainless steel decoration, cabinet manufacturing, and other sheet metal industries.
