We mainly produces press brake, shearing machine etc. With modern enterprise management methods, based on product quality management, its excellent quality, novel design, reasonable price and perfect after-sales service has won the praise of our customers. Our company is specializing in aviation, light industry, metallurgy, construction, automotive, electrical, decorating etc, in which area we provide the necessary professional machine and tools.

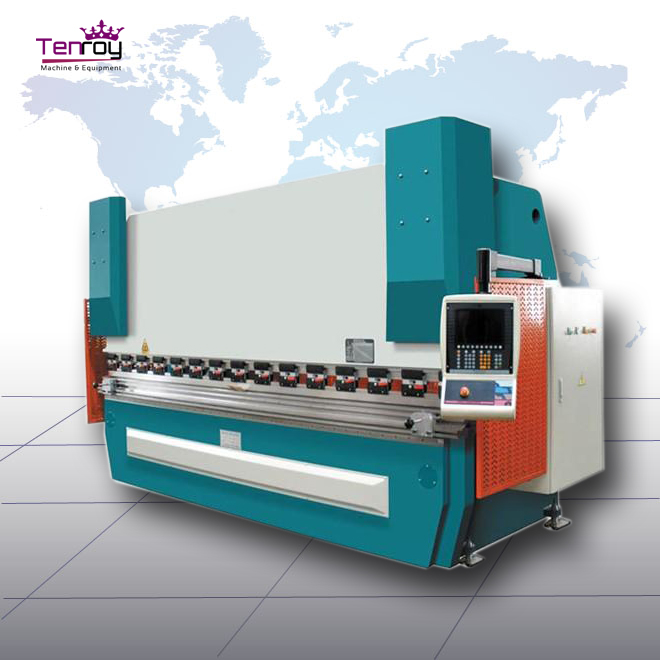

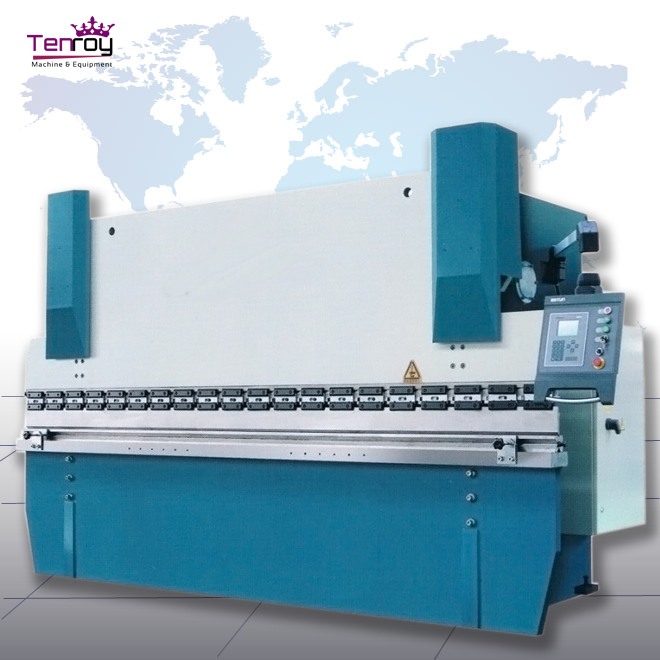

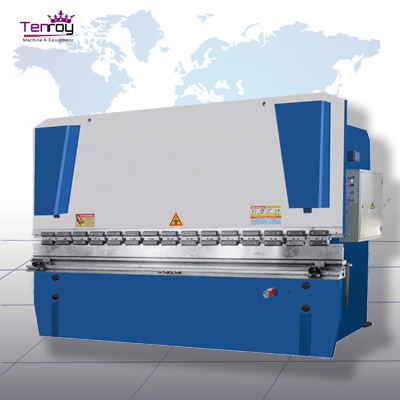

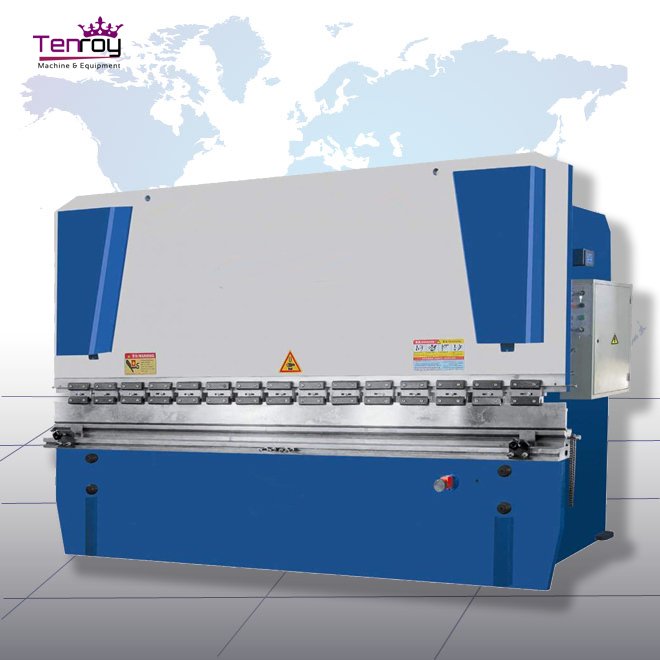

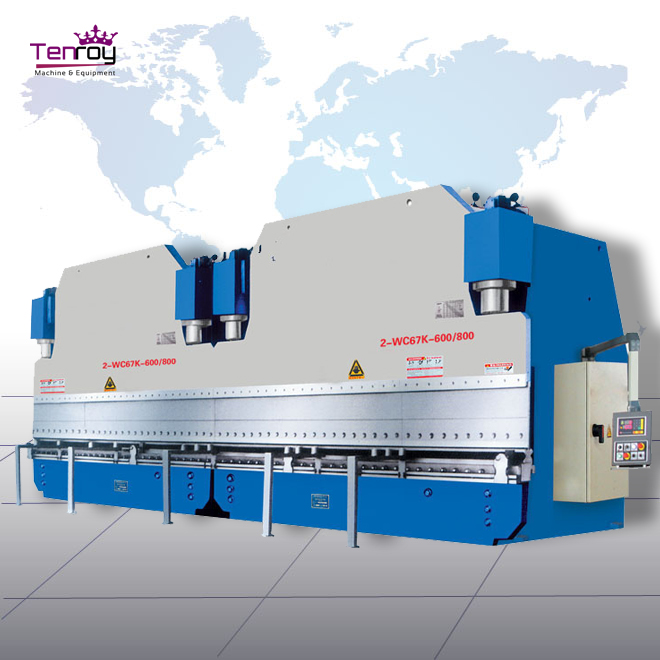

-Press Brake Series
Overall steel welding structure! Brand control system and electrics!
-Shearing Machine Series
Excellent rigidity and stability! Advanced hydraulic integrated system!

Features:
☆  Overal welding structure
☆ Closed loop control mode formed by Gemany electro-hydraulic servo valve and import grating ruler. The slider position have high precision feedback, stable operation, good synchronization performance, high precision of bending and slider repeat positioning.
☆ Back gauge can use multi back gauge axis with more function according to customer requirements..
☆ Hydraulic system uses integrated control system which can reduce pipeline installation, overcome the leakage and ensure the stability of machine operation. And it has a simple and beautiful appearance also.
☆ The automatic compensation mechanism of Hydraulic defection has eliminated the effect of the slider deformation on the workpiece quality. The numeric control system adjusts the compensation amount automatically which is convenient and accurate.
☆ The numeric control system adopts the special CNC system of Electrohydraulic Servo Numeric-control bending machine from Holland DELEM, Italy ESA or Switzerland CYBELEC.

Specifications


Model	63T/2500	80T/3200	100T/3200	160T/3200	200T/3200	250T/3200	320T/3200
Nominal Force (KN)	630	800	1000	1600	2000	2500	3200
Bending Length (mm)	2500	3200	3200	3200	3200	3200	3200
Poles Distance (mm)	1900	2700	2700	2700	2700	2700	2700
Throat Depth (mm)	350	350	400	400	400	400	400
Stroke Travel (mm)	170	170	200	200	200	200	200
Work table Height (mm)	800	800	800	800	800	800	800
Die Loading Height (mm)	380	380	420	420	420	420	420
Main Motor Power (kw)	5.5	7.5	7.5	11	15	15	18.5
Compensatin cylinder No.	2	3	3	3	3	3	3
Axes	3+1	3+1	3+1	3+1	3+1	3+1	3+1
Back Gauge*Travel (mm)	500	500	500	500	500	500	500
Back Gauge Speed (mm/s)	200	200	200	200	200	200	200
Outline Dimension (mm)	3100*1450*2050	3500*1550*2100	3500*1580*2400	3500*1650*2500	3500*1680*2550	3500*1700*2600	3500*1800*2730

Due to continuous improvement, discrepancy exists between above data and the actual machine data, the technical parameters on the agreements shall prevail.

Technical documents included：
1. Manual instruction (including hydraulic scheme, schematic circuit diagram and machine base map.
2. Verification certificate.
3. Packing list (including the technical documents).

Basic accessories table


No	Accessories	Specification	Modle	Q’ty	Remark
1	Foot switch			1set
2	stone bolt	M24×500		4set
3	The button key			2pc
4	Electric box door key			2pc
5	Front extension arm			2pc



Spare parts table


No.	Name	Material	Owned parts	Q’ty	Remark
1	O Seal	RubberI-4	Hydraulic	9pcs	11×1.9GB1235-76
2	O Seal	RubberI-4	Hydraulic	10pcs	20×2.4GB1235-76
3	O Seal	RubberI-4	Hydraulic	2pcs	25×2.4GB1235-76
4	O Seal	RubberI-4	Hydraulic	4pcs	35×3.1GB1235-76
5	O Seal	RubberI-4	Hydraulic	2pcs	45×3.1GB1235-76
6	Compound gasket	φ42	Pipeline	2pcs
7	Compound gasket	φ42	Pipeline	3pcs
8	Compound gasket	φ42	Pipeline	3pcs


4. Machine color is standard and is customerized according to customer’s requirements.

Technical training:

Tenroy company is responsible for the user operator training and also we will provide a training software to you.

Quality assurance:
Our company is responsible for the maintenance during the use period (damage that caused by improper operation, the user should bear the repair charge). Warranty is 12 months after the end debugging.
