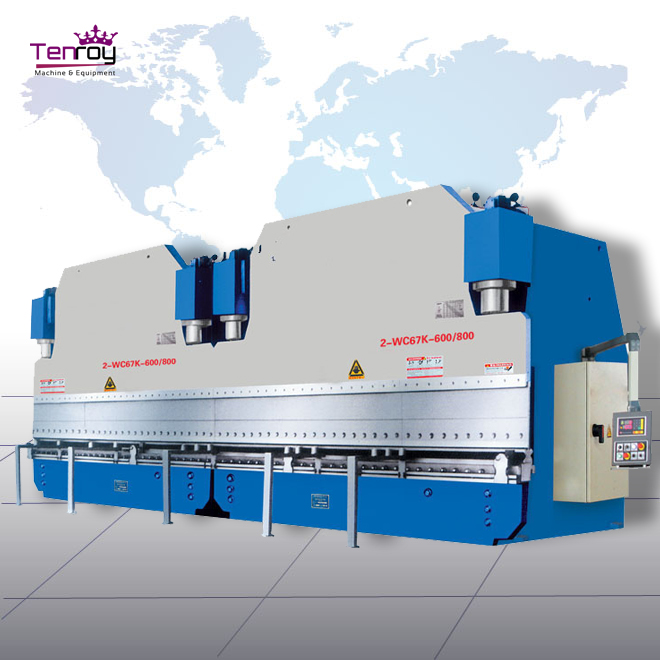

2-WC67K Series dual-machine Linked Hydraulic CNC Press Plate

Times of attention:

Commodity type:Press Brake and Shears

Product description:We mainly produces press brake, shearing machine etc. With modern enterprise management methods, based on product quality management, its excellent quality, novel design, reasonable price and perfect after-sales service has won the praise of...

Consultation telephone:0555-2228055

We mainly produces press brake, shearing machine etc. With modern enterprise management methods, based on product quality management, its excellent quality, novel design, reasonable price and perfect after-sales service has won the praise of our customers. Our company is specializing in aviation, light industry, metallurgy, construction, automotive, electrical, decorating etc, in which area we provide the necessary professional machine and tools.

-Press Brake Series
Overall steel welding structure! Brand control system and electrics!
-Shearing Machine Series
Excellent rigidity and stability! Advanced hydraulic integrated system!

Features:
☆ Use two same specification WC67K series machines to collocate the dual-machine linked synchronization stystem.
☆ It can be used to process long workpiece by dual-machine and or to use them individually, so that to improve production efficiency.
☆ The upper die is equipped with deflection compensation devices to ensure the accuracy of the processing workpiece.
☆ The Mechanic block, the torsion axis and the synchronous valve controlled synchronously.
☆ The black gauge distance and the upper stroke travel are electric control with digital display.

Specifications
Model Norminal Force
 (KN)
Work table length
 (mm)
Poles Distance
(mm)
Throat Depth (mm)        Slider Stroke (mm)        Stroke Adjustment (mm)             Max. Opening Height (mm)               Stroke No.
(min-1)
Main Motor Power
(kw)
2-WC67K-100/3200 2*1000 2*3200 2550 320 130 100 390 ≧10 7.5
2-WC67K-100/4000 2*1000 2*4000 3350 320 130 100 390 ≧10 7.5
2-WC67K-160/4000 2*1600 2*4000 3140 320 200 150 440 ≧6 11
2-WC67K-200/4000 2*2000 2*4000 3500 350 200 150 450 ≧6 18.5
2-WC67K-250/3200 2*2500 2*3200 2540 400 250 180 500 ≧3 18.5
2-WC67K-250/4000 2*2500 2*4000 3100 400 250 180 500 ≧3 18.5
2-WC67K-250/5000 2*2500 2*5000 4000 400 250 180 500 ≧3 18.5
2-WC67K-250/6000 2*2500 2*6000 5000 400 250 180 500 ≧3 18.5
2-WC67K-300/5000 2*3000 2*5000 3900 400 250 180 535 ≧30 22
2-WC67K-300/6000 2*3000 2*6000 4900 400 250 180 535 ≧3 22
2-WC67K-400/7000 2*4000 2*7000 6000 450 300 220 630 ≧2.5 30
2-WC67K-500/6000 2*5000 2*6000 5050 450 300 220 630 ≧2.5 37
Due to continuous improvement, discrepancy exists between above data and the actual machine data, the technical parameters on the agreements shall prevail.

Technical documents included:
1. Manual instruction (including hydraulic scheme, schematic circuit diagram and machine base map.
2. Verification certificate.
3. Packing list (including the technical documents).

Basic accessories table

No Accessories Specification Modle Q’ty Remark
1 Foot switch     1set
2 stone bolt M24×500   4set
3 The button key     2pc
4 Electric box door key     2pc
5 Front extension arm     2pc


Spare parts table

No. Name Material Owned parts Q’ty Remark
1 O Seal RubberI-4 Hydraulic 9pcs 11×1.9GB1235-76
2 O Seal RubberI-4 Hydraulic 10pcs 20×2.4GB1235-76
3 O Seal RubberI-4 Hydraulic 2pcs 25×2.4GB1235-76
4 O Seal RubberI-4 Hydraulic 4pcs 35×3.1GB1235-76
5 O Seal RubberI-4 Hydraulic 2pcs 45×3.1GB1235-76
6 Compound gasket φ42 Pipeline 2pcs
7 Compound gasket φ42 Pipeline 3pcs
8 Compound gasket φ42 Pipeline 3pcs

4. Machine color is standard and is customerized according to customer’s requirements.

Technical training:

Tenroy company is responsible for the user operator training and also we will provide a training software to you.

Quality assurance:
Our company is responsible for the maintenance during the use period (damage that caused by improper operation, the user should bear the repair charge). Warranty is 12 months after the end debugging.
