We mainly produces press brake, shearing machine etc. With modern enterprise management methods, based on product quality management, its excellent quality, novel design, reasonable price and perfect after-sales service has won the praise of our customers. Our company is specializing in aviation, light industry, metallurgy, construction, automotive, electrical, decorating etc, in which area we provide the necessary professional machine and tools.

-Press Brake Series
Overall steel welding structure! Brand control system and electrics!

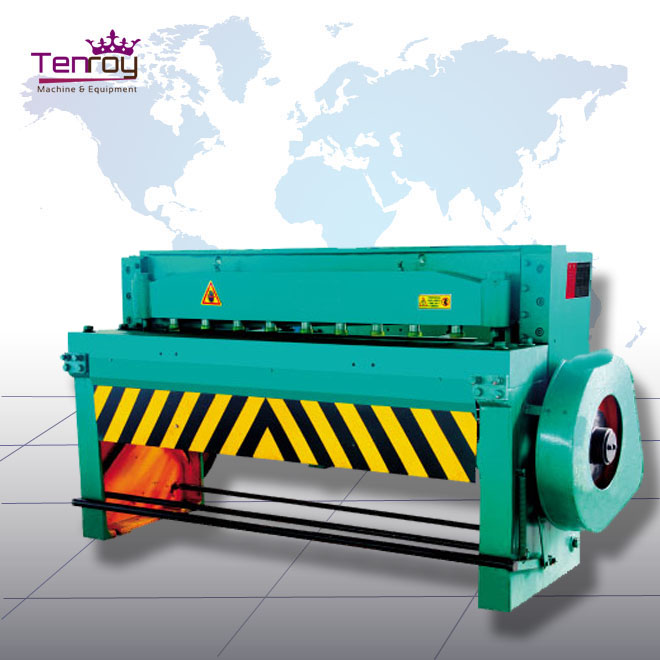

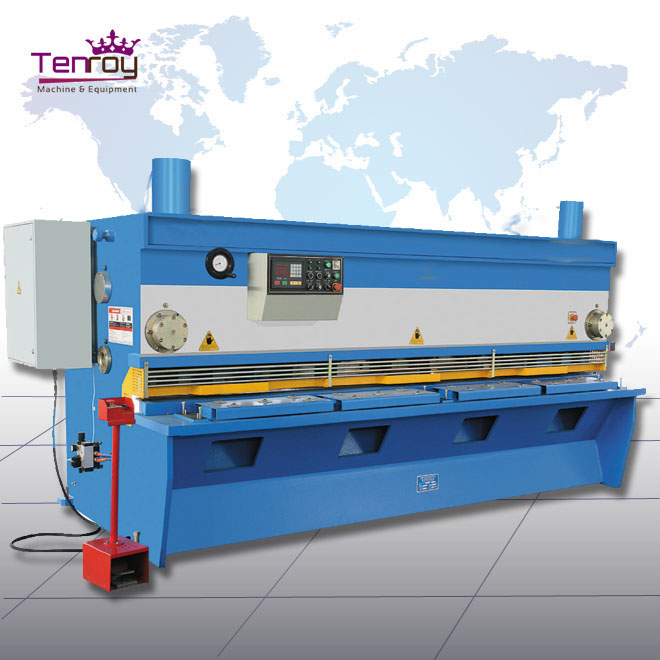

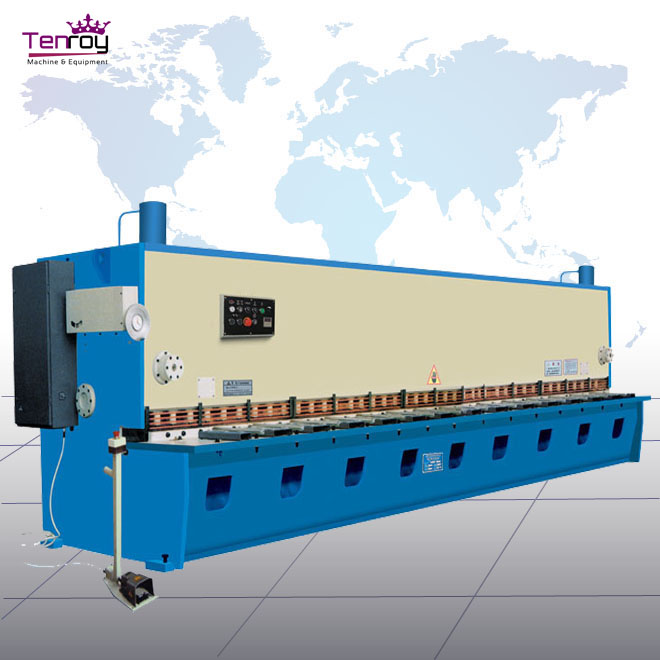

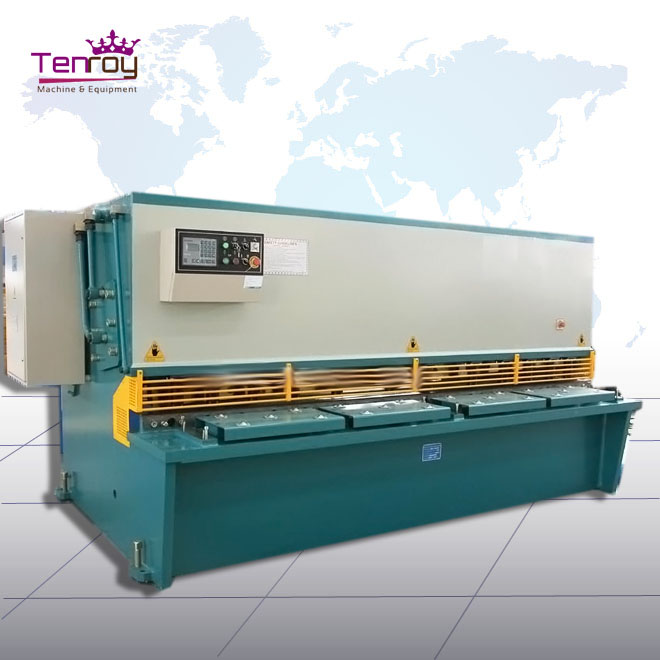

-Shearing Machine Series
Excellent rigidity and stability! Advanced hydraulic integrated system!

Features:
☆ Rack, knife vibration to eliminate stress, welding machine, durable;
☆ Advanced integrated hydraulic system, good reliability;
☆ Three-point support rolling guide to eliminate the bearing clearance, to ensure the quality of shear;
☆ Electric blade gap adjustment, quick and accurate;
☆ On the full use of the blade edge on all sides, the increased use of time;
☆ Shear angle can be electrically adjusted, reducing the amount of shear deformation plate;
☆ After the block, RV reducer electric adjustment, electronic digital display, accurate and reliable.

Specifications

Model	Plate Thickness (mm)	Plate width (mm)	Shearing Angle (°)	Throat Depth (mm)	Max. Distance of Back Gauge (mm)	Stroke No. (/min)	Main Motor Power (kw)	Outline Dimension (mm)
6*2500	6	2500	0.5°-1°30’	80	600	14	7.5	3100*1725*1960
6*3200	6	3200	0.5°-1°30’	80	600	12	7.5	3650*1750*1980
6*4000	6	4000	0.5°-1°30’	80	600	10	7.5	4650*1780*2075
6*5000	6	5000	0.5°-1°30’	80	600	8	7.5	5650*1830*2250
6*6000	6	6000	0.5°-1°30’	80	600	8	7.5	6650*1890*2380
8*2500	8	2500	0.5°-1°30’	80	600	14	7.5	3100*1725*1960
8*3200	8	3200	0.5°-1°30’	80	600	12	7.5	3850*1750*1980
8*4000	8	4000	0.5°-1°30’	80	600	10	7.5	4650*1850*2075
8*5000	8	5000	0.5°-2°	80	600	7	15	5805*2000*2500
8*6000	8	6000	0.5°-2°	100	600	7	15	6805*2115*2715
10*2500	10	2500	0.5°-2°30’	120	600	10	15	3195*1800*210
10*3200	10	3200	0.5°-2°30’	120	600	8	15	3895*1800*2240
10*4000	10	4000	0.5°-2°30’	120	600	6	15	4695*1930*2275
10*5000	10	5000	0.5°-2°30’	120	600	5	15	5905*2115*2715
10*6000	10	6000	0.5°-2°30’	120	600	5	15	6905*2215*2800
12*2500	12	2500	0.5°-2°30’	120	600	10	15	3195*1800*2210
12*3200	12	3200	0.5°-2°30’	120	600	8	15	3895*1800*2240
12*4000	12	4000	0.5°-2°30’	120	600	6	15	4710*1950*2485
12*5000	12	5000	0.5°-2°30’	120	600	5	18.5	5905*2115*2800
12*6000	12	6000	0.5°-2°30’	120	600	4	18.5	7000*2300*3100
16*2500	16	2500	0.5°-2°30’	120	600	8	15	3215*1880*2340
16*3200	16	3200	0.5°-2°30’	120	600	7	15	3915*1880*2445
16*4000	16	4000	0.5°-2°30’	120	600	6	15	4715*1950*2590
16*5000	16	5000	0.5°-2°30’	120	600	5	22	6000*2300*3000
16*6000	16	6000	0.5°-2°30’	120	600	4	37	7000*2300*3100
20*2500	20	2500	0.5°-2°30’	120	600	6	22	3215*1890*2465
20*3200	20	3200	0.5°-3°	120	600	5	30	4120*1890*2780
20*4000	20	4000	0.5°-3°	120	600	4	30	4925*2150*2900
20*5000	20	5000	0.5°-3°	120	600	4	37	6000*2300*3050
25*2500	25	2500	0.5°-3.5°	120	600	5	30	3435*2000*2710
25*3200	25	3200	0.5°-3.5°	120	600	5	30	4120*2200*3000
25*4000	25	4000	0.5°-3.5°	120	600	3	30	4950*2200*3150
30*2500	30	2500	1°-3.5°	120	600	4	30	3435*2020*2770
30*3200	30	3200	1°-3.5°	120	600	5	37	4200*2300*3200
30*4000	30	4000	1°-3.5°	120	800	3	55	5000*2800*3200
30*6000	30	6000	1°-3.5°	120	800	3	55	7100*3000*3600
40*2500	40	2500	1°-4°	120	800	3	75	3100*2900*2900

Above information are just for reference. Discrepancy exists between above data and the actual machine data, the machine data prevail. Tenroy company reserves the right of final interpretation.

Sale Service:
1, the operation manual and quality certification will be along with machine.

2, one set of wear Annex and one set installation and maintenance tools will be provided.

3. One set high quality standard or special toolings be provided.

3, We provide one year's guarantee and lifetime maintenance
